Physical + Digital Dual Protection — One-time locking galvanized steel bolt plus embedded UHF RFID chip
ISO 17712 H Certified — Complies with the highest international security standard for container seals
Long-Range Reading — UHF 860-960 MHz, read range ≥ 4 meters for bulk scanning
Alien H4 Chip — 128-bit EPC, 64-bit TID, 128-bit user memory for reliable data storage
Tamper-Evident — Cannot be removed without breaking; clear evidence of any intrusion
Weather-Resistant — Operating temperature -30°C to +80°C; ABS body resists corrosion and impact
Globally Unique ID — Pre-programmed unique chip ID prevents counterfeiting
Customizable — Laser marking for logos, QR codes, barcodes, and serial numbers
| Parameter | Specification |
|---|---|
|
Frequency |
UHF 860 – 960 MHz |
|
Protocol |
EPC Global C1G2 / ISO 18000-6C |
|
Chip |
Alien H4 |
|
EPC Memory |
128 Bit |
|
TID Memory |
64 Bit |
|
User Memory |
128 Bit |
|
Read Range |
≥ 4 meters |
|
Operating Temperature |
-30°C to +80°C |
|
Compliance |
ISO 17712:2013 (High Security "H") |
|
Body Material |
ABS Plastic |
|
Pin Material |
Galvanized Carbon Steel |
| Dimension | Value |
|---|---|
|
Total Length |
136 mm (Pin 100 mm + Body 36 mm) |
|
Pin Diameter |
Ø 8.8 mm |
|
Body Width |
17 mm |
|
Body Height |
43 mm |
|
Top Ring Diameter |
Ø 22 mm |
Ocean freight containers
Truck and trailer doors
Tanker trucks
Railway cargo
Warehouse and logistics asset tracking
Customs and border control
High-value cargo (pharmaceuticals, electronics, luxury goods)
| Advantage | Benefit |
|---|---|
|
Automated Scanning |
UHF RFID enables hands-free bulk reading, reducing inspection time |
|
No Battery Needed |
Passive RFID design means zero maintenance cost |
|
High Security |
ISO 17712 H certification satisfies global customs requirements |
|
Anti-Counterfeit |
Unique chip ID prevents cloning and forgery |
|
Durable |
Withstands harsh logistics environments (-30°C to +80°C) |
|
Customizable |
Logo, barcode, QR code, and color options available |

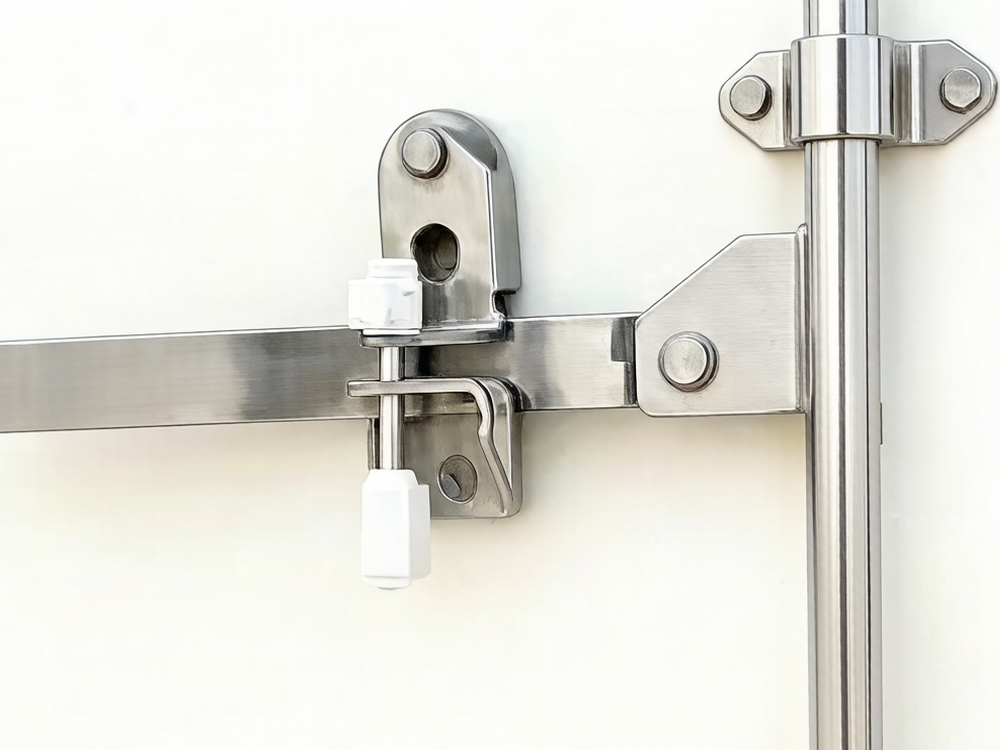

Insert the bolt through the container door locking mechanism
Push firmly until the lock snaps into place
Scan the RFID tag automatically at gates or checkpoints
Track seal status and location in real time via your backend system
Remove by cutting the bolt at destination
| Option | Detail |
|---|---|
|
Chip |
Alien H3, Higgs-4, or other UHF chips available |
|
Laser Marking |
Logo, QR code, barcode, serial number |
|
Body Color |
White, yellow, blue, green, red, or custom |
|
Packaging |
Standard export carton or custom packaging |
📩 Request a free sample or contact our sales team for pricing and bulk orders.
ES103B — Where physical strength meets digital intelligence.
Manufactured to ISO 9001 standards | Trusted by logistics professionals worldwide
